Description
Product Overview and Specifications

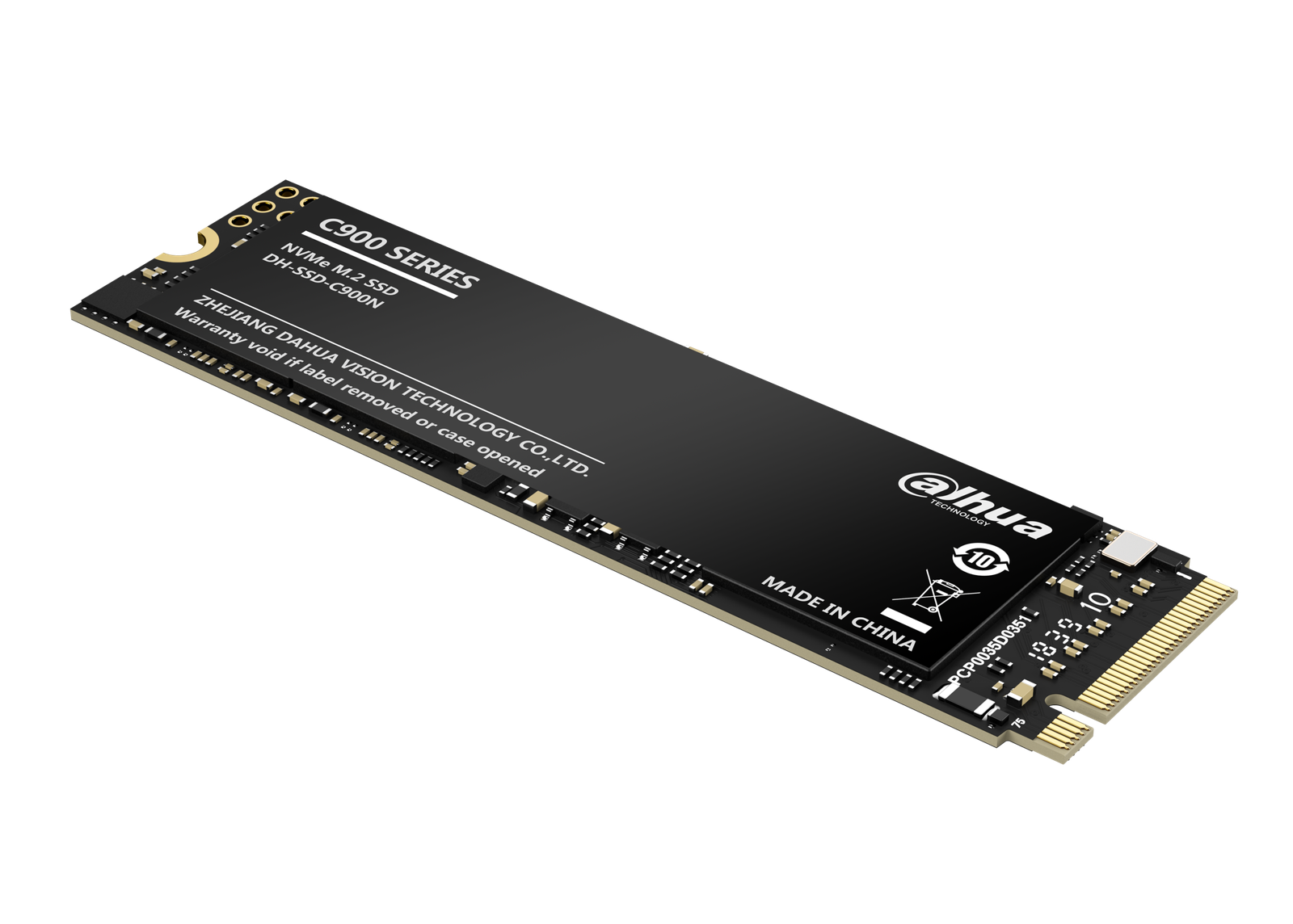

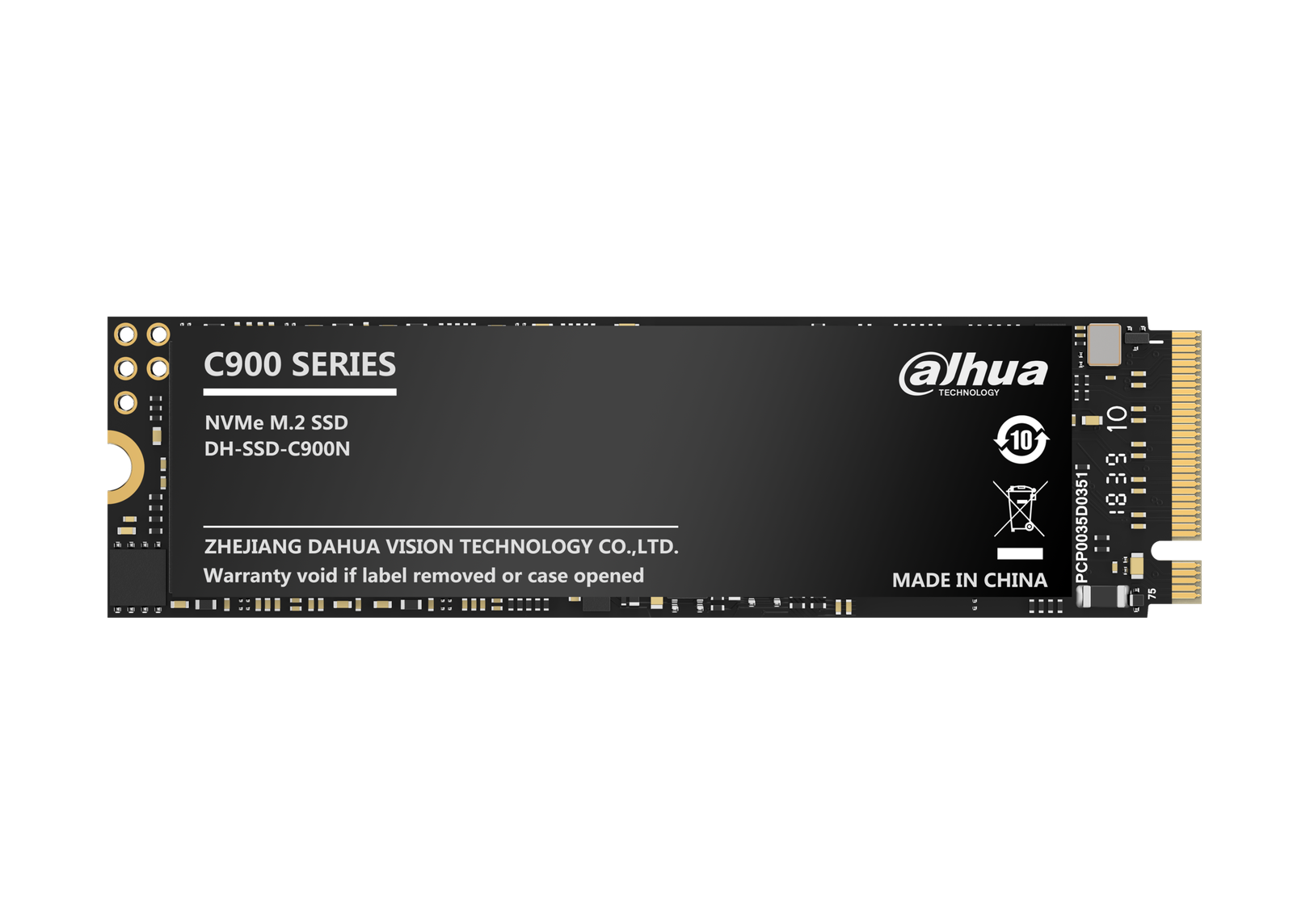

The Dahua 256GB NVMe C900 Gen 3 SSD series represents a compelling choice for both consumer and enterprise applications, delivering robust performance and reliability. This series encompasses a range of capacities, including 256GB, catering to various storage needs. The Dahua C900 series is designed with a slim M.2 2280 form factor, providing a versatile solution that seamlessly fits into modern motherboards.
Equipped with a PCIe Gen 3.0 × 4 connection interface, the C900 series ensures high data transfer rates, significantly enhancing read and write performance. The dimensions of the drive measure 22mm in width and 80mm in length, making it compatible with a wide array of devices, from laptops to high-performance desktops. Additionally, the drive’s light weight contributes to its adaptability in compact builds.
In terms of power consumption, the Dahua 256GB NVMe C900 Gen 3 SSD operates efficiently, with power requirements that are manageable during maximum load and idle states. The integration of 3D NAND memory technology not only helps in delivering faster data speeds but also provides greater endurance and reliability over traditional memory technologies.
The C900 series also incorporates essential features that enhance its durability and performance. S.M.A.R.T (Self-Monitoring, Analysis, and Reporting Technology) contributes to the drive’s longevity by continuously monitoring the health and performance parameters. Meanwhile, TRIM support ensures optimum performance by managing unused data, and garbage collection helps maintain system efficiency by organizing free space. These features collectively empower the Dahua C900 series to meet the demands of both personal and professional use, ensuring enhanced productivity and reliability for users.
Product Model |
DHI-SSD-C900N128G |
DHI-SSD-C900N256G |
DHI-SSD-C900N512G |
DHI-SSD- C900N1TB |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
Capacity1 |
128 GB |
256 GB |
512 GB |
1 TB |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
Form Factor |
M.2 2280 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Port |
PCIe Gen 3.0 × 4 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight |
Max. 8 g (0.02 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions |
80.00 mm × 22.00 mm × 2.25 mm (3.15″ × 0.87″ × 0.09″) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packaging Dimensions |
130 mm × 104 mm × 17 mm (5.12″ × 4.09″ × 0.67″) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Memory Component |
3D NAND |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption2 |
3066 mW (max) |
2950 mW (max) |
3521 mW (max) |
3696 mW (max) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
S.M.A.R.T |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
TRIM |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Garbage Collection |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Sequential Read2 |
Up to 2000 MB/s |
Up to 2000 MB/s |
Up to 2000 MB/s |
Up to 2000 MB/s |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
Sequential Write2 |
Up to 650 MB/s |
Up to 1050 MB/s |
Up to 1500 MB/s |
Up to 1600 MB/s |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
4K Random Read2 |
Up to 58800 |
Up to 88300 |
Up to 99500 |
Up to 96200 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
4K Random Write2 |
Up to 102400 |
Up to 95400 |
Up to 96200 |
Up to 91300 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
MTBF |
1,500,000 hours |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature |
0 °C to +70 °C (+32 °F to +158 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperature |
–40 °C to +95 °C (–49 °F to +203 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity |
5%–95% (non-condensing) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Vibration Resistance |
10-200Hz, 0.5 G |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Shock Resistance |
1500G&0.5 ms (half sine wave) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
TBW |
80 TB |
128 TB |
256 TB |
512 TB |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
Warranty3 |
3-year limited warranty |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Reference Information |
1.Capacity calculation: 1 GB = 1 billion bytes (IDEMA). Actual available capacity might be reduced (due to formatting, partition, operating system applications, or other necessary usage). 2. System configuration of performance test: Chip-AMD Ryzen 5 5600X 6-Core Processor@3.70 GHz, 8G-DDR4, operating system-Windows 10 x64, testing tool-CrystalDiskMark 6.0.0 x64. 3.Warranty period or maximum write amount (TBW), whichever comes first. 4.High performance SLC cache has been enabled. *Above data based on internal testing of Zhejiang Huayixin Technology Co., Ltd Laboratory The actual performance might differ depending on the device it is being used with. |
